Fiber optic patch cord interface types

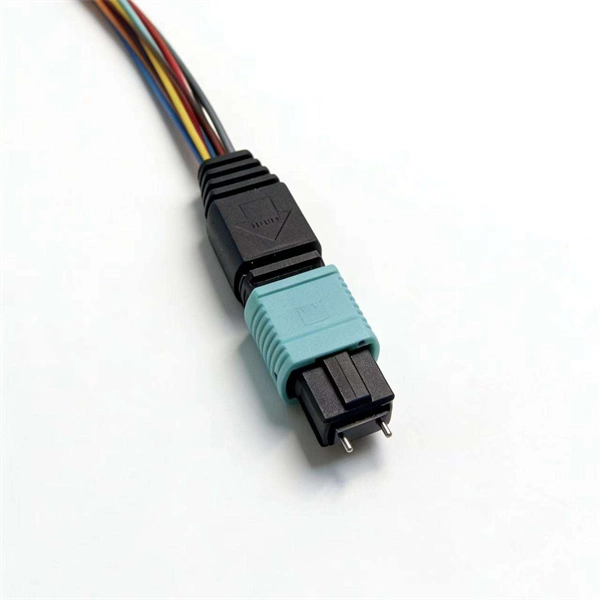

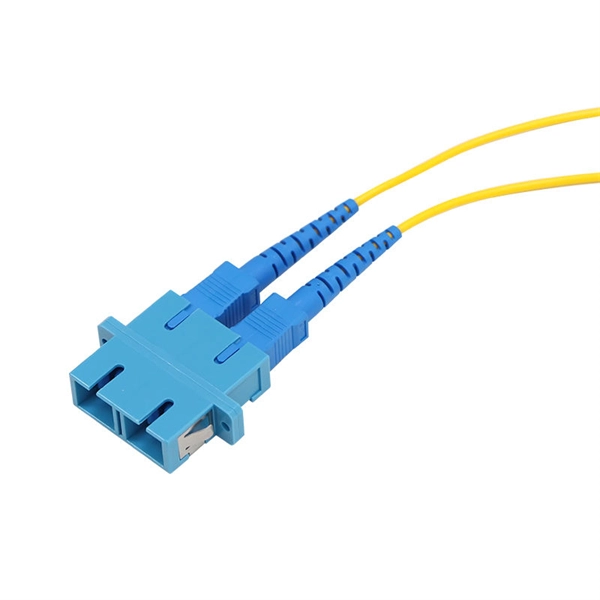

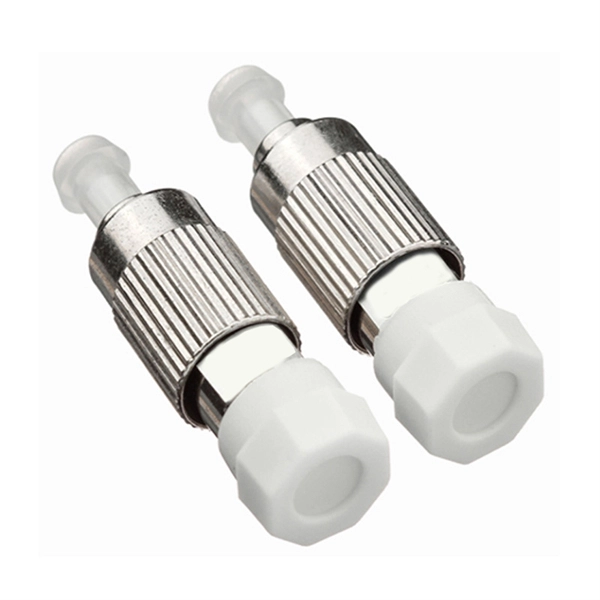

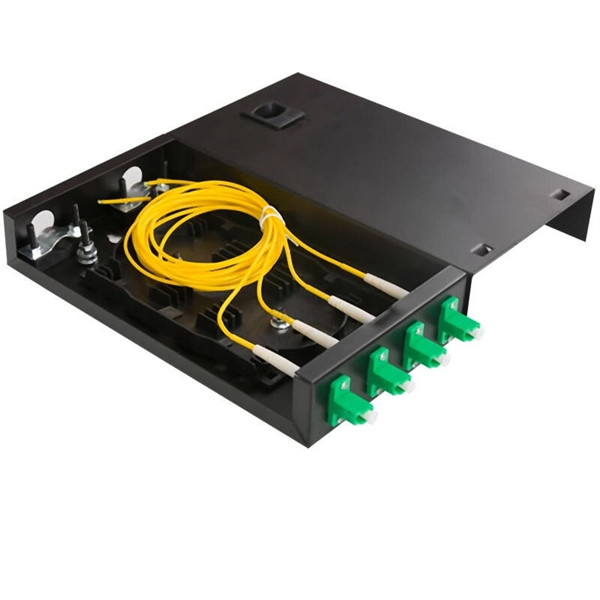

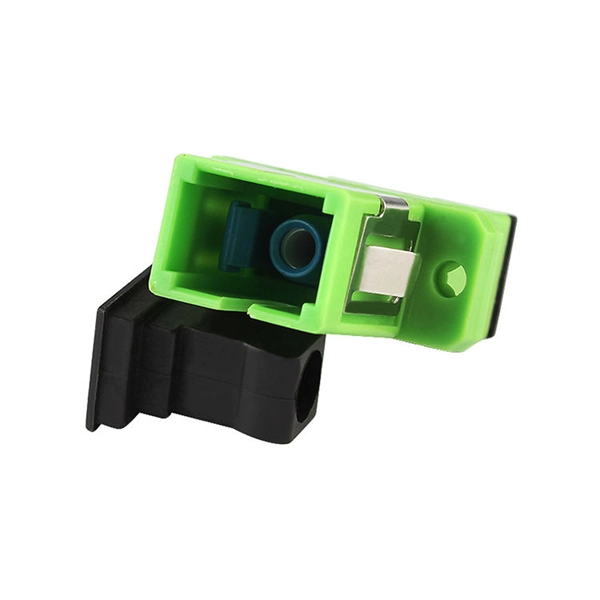

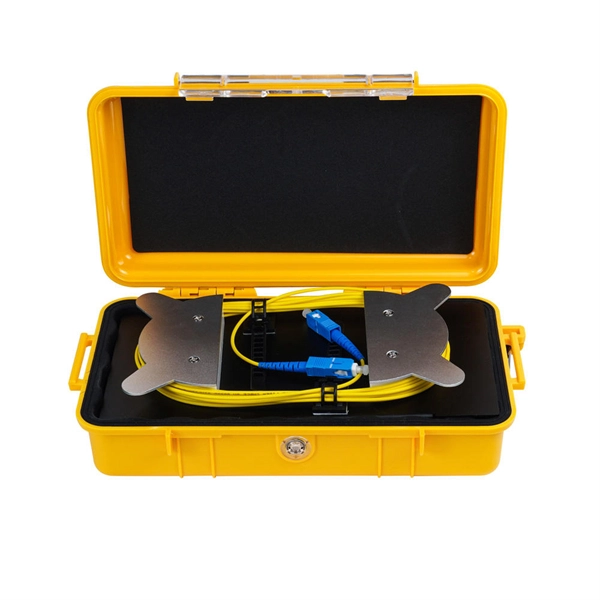

Fiber optic patch cords are available with a variety of connector interfaces, including LC, SC, ST, FC, MPO/MTP, MU, MT-RJ, and E2000, each designed for specific applications and performance requirements.Common Connector TypesLC (Lucent Connector): Small form factor, duplex, widely used in modern data centers and QSFP transceivers due to compact size and high density compatibility .SC (Subscriber Connector): Larger, push-pull design, commonly used in telecom and enterprise networks for reliable connections .ST (Straight Tip): Bayonet-style connector, often found in legacy networks and campus installations .FC (Ferrule Connector): Screw-on type, used in high-vibration environments and precision applications .MPO/MTP (Multi-Fiber Push-On): Multi-fiber connectors for high-density applications, ideal for data centers and backbone links .MU (Miniature Unit): Compact connector for high-density setups, less common but used in specialized equipment .MT-RJ (Mechanical Transfer Registered Jack): Duplex connector with two fibers in a single ferrule, used in some LAN and telecom applications .E2000: High-performance connector with spring-loaded shutter, used in FTTH and high-precision networks .Fiber Modes and ConfigurationsSingle-Mode Fiber (SMF): Narrow core (~9µm), supports long-distance transmission, typically used with yellow jackets. Variants include OS1 and OS2 for indoor and outdoor applications .Multimode Fiber (MMF): Wider core (50–62.5µm), suitable for short-distance, high-bandwidth applications. OM1/OM2 (orange), OM3/OM4 (aqua/violet), OM5 (lime green) are common standards .Simplex vs Duplex: Simplex has a single fiber for unidirectional transmission, while duplex has two fibers for bidirectional communication .Connector End-Face PolishingUPC (Ultra Physical Contact): Low insertion loss, moderate return loss, suitable for general Ethernet and telecom applications .APC (Angled Physical Contact): 8° angled end-face, minimizes back reflection, ideal for FTTH, PON, and RF video systems .PC (Physical Contact): Older standard, largely replaced by UPC and APC due to lower performance .Specialized Patch Cord TypesBend-Insensitive Fiber: Maintains signal integrity in tight bends, useful in high-density racks or FTTH installations .Armored Cables: Metallic layer for protection against crushing or rodents, suitable for harsh environments .Mode-Conditioning Cables: Used to equalize optical paths in multimode systems when interfacing with single-mode equipment . Fiber optic patch cords are selected based on connector type, fiber mode, configuration, and environmental requirements, ensuring optimal performance for data centers, telecom networks, and enterprise installations .
