Dual-link optical ports on the switch

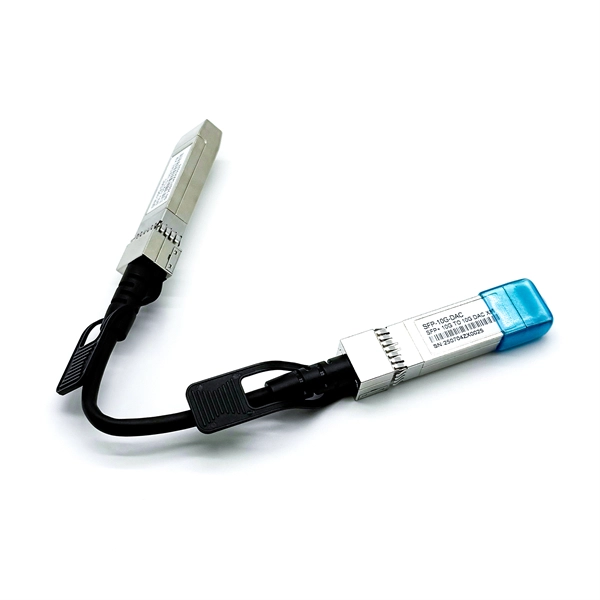

Dual-link optical ports can be connected using compatible SFP/SFP+ transceivers and fiber cables, with the switch managing redundancy or failover between the links.Physical ConnectionTo connect dual-link optical ports, you need matching SFP or SFP+ transceivers for each port on the switch. Ensure that both transceivers support the same speed (e.g., 1 Gbps or 10 Gbps) and fiber type (single-mode or multi-mode) to avoid compatibility issues . Use LC-terminated fiber optic cables to connect the transceivers, ensuring that the transmit (TX) of one end connects to the receive (RX) of the other . Pre-terminated fiber cables are recommended for ease of installation and minimal signal loss .Redundancy and FailoverMany switches, such as ExtremeSwitching or Summit models, support automatic failover between copper and fiber or between multiple fiber links on combination ports . When connecting dual optical links:Connect each fiber to a separate SFP port on the switch.The switch will typically activate one link as primary and the other as redundant.If the active link fails, the switch automatically switches to the backup link without manual intervention . The order in which connectors are inserted can determine which link is active. For example, if a copper port is connected first, it may be treated as active, and the fiber port as redundant. Inserting the fiber first can reverse this behavior .Configuration ConsiderationsVerify SFP compatibility with your switch using the manufacturer's optics-to-device compatibility matrix or commands like show idprom interface .Ensure both links are configured for the same speed and duplex settings to prevent link negotiation issues .For dual-link setups intended to increase bandwidth rather than redundancy, consider link aggregation (LACP) if supported by your switch, which allows multiple fiber links to operate as a single logical connection.Best PracticesUse multi-mode fiber (OM3/OM4) for short distances and single-mode fiber (OS2) for longer runs .Avoid bending fiber cables sharply; maintain proper bend radius to prevent signal loss or damage .Label each fiber and transceiver to simplify troubleshooting and maintenance.Test each link individually before enabling redundancy or aggregation to ensure proper operation. By following these steps, you can safely connect dual-link optical ports on a switch, achieving either redundancy or increased bandwidth while maintaining network stability and performance.
